Low Drift High Performance Inertial Measurement Unit Sensor For UAVs And Intelligent Driving

Brand Name : Firepower

Model Number : GI200F-A0

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : negotiable

Payment Terms : T/T

Supply Ability : 1000/month

Delivery Time : 1 week

Packaging Details : sponge/box

Product name : IMU Accelerometer Gyro

Gryo scope : 500deg/s

Gryo allan variance : 2deg/h

Accelerometer allan variance : 0.1mg

Accelerometer scope : 16g

Communication interface : 1-channel SPI/UART

Gryo scale factor accuracy : 0.3%

Power Supply Voltage : 3.3V

Contact Now

Low Drift High Performance Inertial Measurement Unit  Sensor for UAVs and Intelligent Driving



Product Description



The GI200F-A0-IMU is an inertial measurement unit (IMU) based on micromachining technology (MEMS), with built-in high-performance MEMS gyroscope and MEMS accelerometer, outputting 3 angular velocities and 3 accelerations.

GI200F-A0-IMU has high reliability and strong environmental adaptability. By matching different software, the product can be widely used in intelligent driving, tactical and industrial UAV, intelligent ammunition, seeker, mobile communication, mapping, stable platform and other fields.



Main Application Field

  1. Intelligent driving
  2. Tactical and Industrial UAV
  3. Smart Munitions
  4. Seeker
  5. Communication in motion
  6. Mapping
  7. Stabilize the platform



Main Functions

  1. Three-axis digital gyroscope:
    1. ± 500º/s dynamic measuring range;
    2. Zero bias stability: 10 °/H (GJB, 10s), 2.0 °/H (ALLAN);
  2. Triaxial digital accelerometer:
    1. ± 16g dynamic measuring range;
    2. Zero-bias stability: 0.5mg (GJB, 10s), 0.1mg (ALLAN);
  3. High reliability: MTBF > 20000h;
  4. Guaranteed accuracy within the full temperature range (-40 ℃~ 70 ℃): built-in high-performance temperature calibration and compensation algorithm;
  5. Suitable for working under strong vibration conditions;
  6. Interface 1 channel SPI, 1 channel UART.



Performance Index



Parameter Test conditions Minimum value Typical value Maximum value Unit
Gyro Dynamic measuring range 　     500 º/s
Zero bias stability Allan variance   2 　 º/h
10 s average (-40 ℃ ~ + 70 ℃, constant temperature)   10 　 º/h
Zero bias Zero bias range   ±0.5 　 º/s
Zero-bias variation over full temperature range①   ±0.5 　 º/s
Scale factor Scale factor accuracy   0.3 　 %
Scale factor nonlinearity   0.02 　 %FS
Bandwidth 　 　 200 　 Hz
Accelerometer Dynamic measuring range 　   16 　 g
Zero bias stability Allan variance   0.1 　 mg
10 s average (-40 ℃ ~ + 70 ℃, constant temperature)   0.5 　 mg
Zero bias Zero bias range   2 　 mg
Zero bias change in full temperature range, peak-to-peak value①   2 　 mg
Scale factor Scale factor accuracy   0.3 　 %
Scale factor nonlinearity   0.02 　 %FS
Bandwidth 　 　 200 　 Hz
Communication interface 1-channel SPI Baud rate     15 MHz
UART Baud rate   230.4 　 Kbps
Sampling frequency SPI   1000 　 Hz
UART 　 200 1000 Hz
Electrical characteristics Voltage 　   3.3 　 V
Power consumption 　     1 W
Ripple P-P 　 　 100 mV
Structural characteristics Size 　   24×24×10 　 mm
Weight 　 　 10 　 g
Use environment Operating temperature 　 -40   70 ℃
Storage temperature 　 -45   85 ℃
Vibration 　   20~2000Hz,6.06g 　
Impact 　 　 1000g,0.5ms 　 　
Reliability MTBF 　   20000 　 h
Continuous working time 　 　 120 　 h
1: Calculate the zero deviation of the whole temperature change process, the temperature change rate is ≤ 1 ℃/min, and the temperature range is-40 ℃ ~ + 70 ℃;



Electrical interface



Low Drift High Performance Inertial Measurement Unit Sensor For UAVs And Intelligent Driving

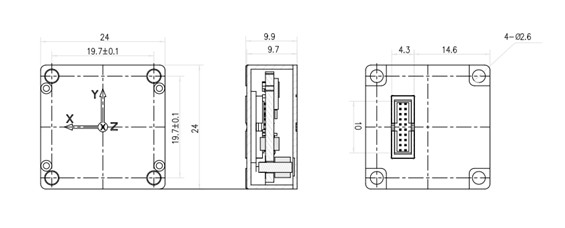

Product Structure



Low Drift High Performance Inertial Measurement Unit Sensor For UAVs And Intelligent Driving

                 L24mm x W24mm x H10mm(L x W x H)
