MEMS Technology IMU Accelerometer Gyro with High Reliability and Strong Adaptability

Brand Name : Firepower

Model Number : GI200G-A0

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : negotiable

Payment Terms : T/T

Supply Ability : 500/month

Delivery Time : 1 weeks

Packaging Details : sponge+box

Gyro Range : ±500º/s

Gyro Zero Bias Stability : 10 °/h (GJB, 10s)

Accelerometer Range : ±16g

Accelerometer Zero Bias Stability : 0.5mg

Interface : 1-channel UART

Bandwidth : 200Hz

Power consumption : 0.8W

Weight : 10g

Contact Now

MEMS Technology IMU Accelerometer Gyro with High Reliability and Strong Adaptability


Product Description


The GI200G-A0-IMU is an inertial measurement unit (IMU) based on micromachining technology (MEMS), with built-in high-performance MEMS gyroscope and MEMS accelerometer, outputting 3 angular velocities and 3 accelerations.


Main Features

  1. Three-axis digital gyroscope:
    1. ±500º/s (MAX:±2000°/s) dynamic measurement range;
    2. Zero bias stability: 10 °/h (GJB, 10s), 2.0 °/h (ALLAN);
  2. Triaxial digital accelerometer:
    1. ±16g (MAX:±200g) dynamic measuring range;
    2. Zero-bias stability: 0.5mg (GJB, 10s), 0.1mg (ALLAN);
  3. High reliability: MTBF > 20000h;
  4. Guaranteed accuracy within the full temperature range (-40 ℃~80 ℃): built-in high-performance temperature calibration and compensation algorithm;
  5. Suitable for working under strong vibration conditions
  6. Interface 1-channel UART

Technical Index


Parameter Test conditions Typical value Unit
Angular velocity Range Turntable 500, 1000, 2000 °/s
Zero bias Stability 10 s average, + 70 ℃, + 20 ℃, -40 ℃ 10 °/h
Allan variance, + 20 ℃ 2 °/h
Zero-bias total temperature variation -40 ℃ ~ + 70 ℃, 1 ℃/min, 10 s average, 1σ ±0.05 °/s
Zero bias Zero bias range ±0.1 °/s
Scale factor Non-linearity +20℃ 0.01 %FS
Scale factor accuracy Life-cycle change, accelerated testing 0.2 %FS
Acceleration sensitive term 　 8 °/h/g
Bandwidth 3dB 200 Hz
Data delay Excluding transmission time ＜5 ms
Acceleration Range 　 16,200 g
Zero bias Stability 10 s average, + 70 ℃, + 20 ℃, -40 ℃ 0.5 mg
Allan variance, + 20 ℃ 0.1 mg
Zero-bias total temperature variation -40 ℃ ~ + 70 ℃, 1 ℃/min variation 1 mg
Zero bias Zero bias range 5 mg
Scale factor Repeatability of successive starts +70℃,+20℃,-40℃ 100 ppm
Non-linearity +20℃ 0.02 %FS
Scale factor accuracy Life-cycle change, accelerated test instead 0.3 %FS
Bandwidth 3dB 200 Hz
Start time Time from power-on to output valid data 500 ms
3 gyro axes and 3 acceleration axes +70℃,+20℃,-40℃ 0.05 °
The degree of nonorthogonality between any two ax
Overall dimensions 　 22.4×24×9 mm
Weight 　 10 g
Power supply 　 5±0.1 V
Power consumption 　 0.8 W
Use environment Operating temperature -40~+80 ℃
Storage temperature -45~+85 ℃
Impact 1000g,0.5ms 　
Vibration 20~2000Hz,6.06g 　
Communication update rate 1-channel UART 500 (default) Hz
1000 (Max)
Communication baud rate 1-channel UART 460.8 (default) kbps
921.6 (Max)


Product Dimension

MEMS Technology IMU Accelerometer Gyro with High Reliability and Strong Adaptability

            L22.4mm x W24mm x H9mm(L x W x H)

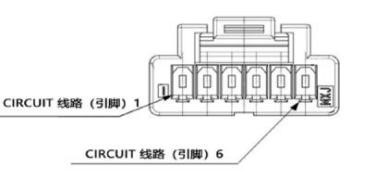

Electrical interface


MEMS Technology IMU Accelerometer Gyro with High Reliability and Strong Adaptability
