2025 New Temperature Compensated Fiber Optic Gyroscope Sensor for Oil Exploration VG910

Name: 2025 New Temperature Compensated Fiber Optic Gyroscope Sensor for Oil Exploration VG910
Brand: Firepower
Price: 1350 USD

Buy cheap 2025 New Temperature Compensated Fiber Optic Gyroscope Sensor for Oil Exploration VG910 product

Brand Name : Firepower

Model Number : MFOG-40

Place of Origin : China

MOQ : 1

Price : 1350$

Payment Terms : L/C,D/P,T/T,Western Union

Supply Ability : 500/month

Delivery Time : 1 week

Packaging Details : Sponge + Carton

Range : ±240°/s

Zero-bias stability( (10s, 1σ) : ≤0.8°/h

Angular random walk : ≤0.02°/h

3dB Bandwidth : ≥1000Hz

Zero-bias repeatability( (1σ) : ≤0.8°/h

Scale factor nonlinearity : ≤1000ppm

Weight : ≤150g

Power Consumption : ≤1.5W

Contact Now

2025 New Temperature Compensated Fiber Optic Gyroscope Sensor for Oil Exploration

Product Description

MFOG-910 Micro-Nano Fiber Optic Gyroscope (hereinafter referred to as the product) is a high-performance angular rate sensor that integrates optical, mechanical, and electronic systems into a compact and robust unit. It operates based on the Sagnac effect, utilizing two beams of light traveling in opposite directions through a micro-nano optical fiber coil to detect angular velocity. By measuring and processing the phase difference between the two beams, the system accurately determines the rate of rotation.

This product adopts an all-solid-state design with no moving or wearing parts, ensuring excellent reliability, fast startup, long operational life, and exceptional resistance to shock and vibration. Its small size, lightweight structure, and low power consumption make it ideal for integration into a wide range of dynamic platforms requiring attitude control and inertial measurement, including UAVs, guided weapons, marine systems, land vehicles, and robotic systems.

Main performance parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±240
2	Scale factor (mV/ ^o/s)	47±5
3	Scale factor nonlinearity (ppm)	≤1000
4	Zero-bias stability (10s, 1σ, ^o/H)	≤0.8
5	Zero-bias repeatability (1σ, ^o/H)	≤0.8
6	3dB Bandwidth (Hz)	≥1000
7	Random walk ( ^o/√ H)	≤0.02
8	Power supply (V)	5+0.25 +12
9	Power Consumption (W)	≤1.5
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Life (years) (calculated assessment)	≥15
13	MTBF (Calculated Assessment)	≥100000

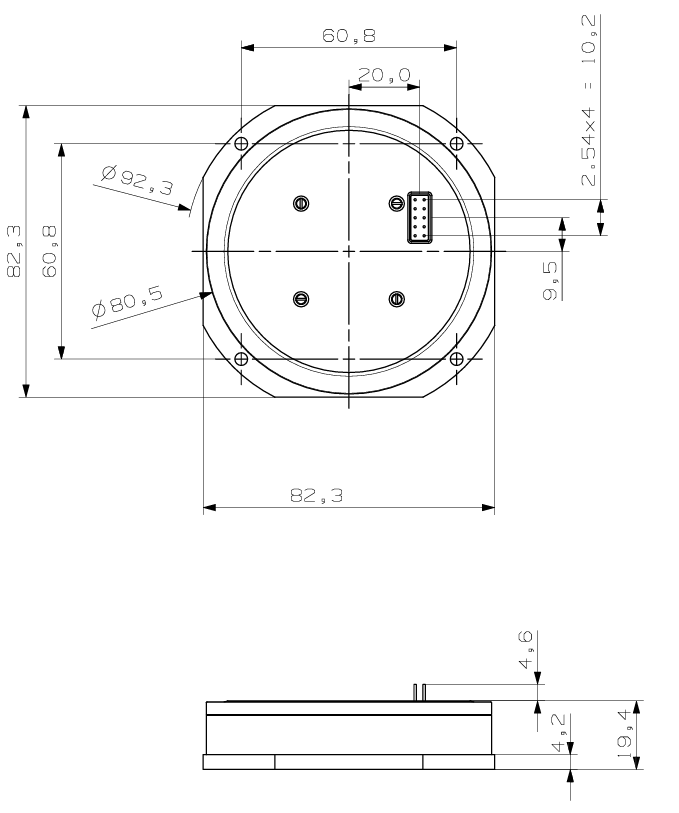

Outline Drawing

2025 New Temperature Compensated Fiber Optic Gyroscope Sensor for Oil Exploration VG910
